How Are Electromagnets Used In Mri Machines?

In the year 2023, the use of electromagnets in MRI machines continues to revolutionize medical imaging technology. Magnetic Resonance Imaging (MRI) is a non-invasive diagnostic technique that uses powerful magnetic fields and radio waves to generate detailed images of the body's internal structures.

At the heart of every MRI machine lies a sophisticated electromagnet system. These electromagnets play a crucial role in creating the magnetic field necessary for the functioning of an MRI scanner.

Understanding Electromagnets

Electromagnets are coils of wire that produce a magnetic field when an electric current flows through them. Unlike permanent magnets, electromagnets can be turned on and off at will, allowing for precise control over the magnetic field.

In MRI machines, powerful electromagnets are used to produce a strong and uniform magnetic field. The main magnet, also known as the primary coil, generates a static magnetic field that aligns the protons within the patient's body.

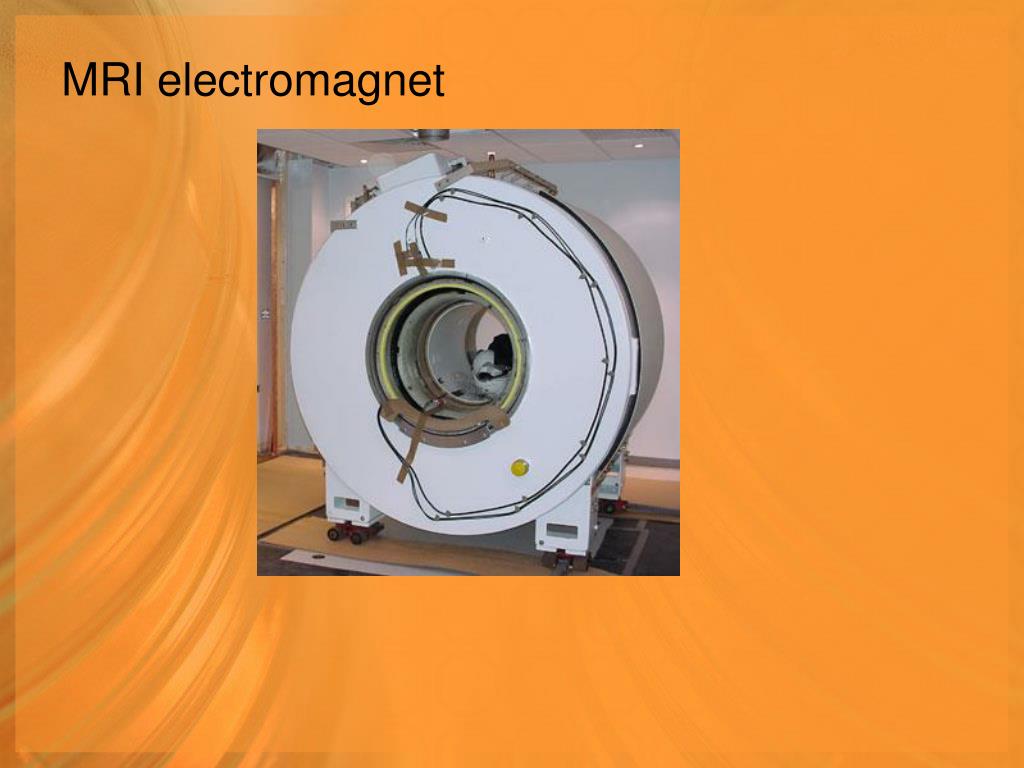

Figure 1: Primary Coil - Generates the static magnetic field in an MRI machine.

Creating the Magnetic Resonance

Once the protons in the body are aligned, a radiofrequency (RF) pulse is applied. This pulse is generated by smaller electromagnets known as gradient coils, which are strategically positioned within the MRI machine.

Figure 2: Gradient Coils - Generate the radiofrequency pulse used in MRI machines.

The RF pulse causes the protons to resonate and emit their own radio waves. These radio waves are then detected by the same gradient coils, which act as receivers. By measuring the strength and timing of these signals, a computer reconstructs a detailed image of the internal structures of the body.

The Advantages of Electromagnets in MRI Machines

Electromagnets offer several advantages over permanent magnets in MRI machines:

• Ability to control the magnetic field strength: Electromagnets can produce a range of magnetic field strengths, allowing for customization based on the specific imaging needs.
• Flexibility in magnetic field orientation: The direction and orientation of the magnetic field can be adjusted, enabling imaging of different body parts from various angles.
• Safe and non-invasive: MRI scans are considered safe and do not involve exposure to ionizing radiation, making them ideal for diagnosing a range of medical conditions.

Q&A

Q: How does an MRI machine create images?

A: An MRI machine creates images by using powerful electromagnets to generate a magnetic field, which aligns the protons in the body. By applying radiofrequency pulses and detecting the emitted signals, detailed images are reconstructed.

Q: Are MRI scans safe?

A: Yes, MRI scans are considered safe as they do not use ionizing radiation like X-rays or CT scans. However, individuals with certain metallic implants or devices may not be eligible for an MRI scan.

Q: Why are electromagnets preferred over permanent magnets in MRI machines?

A: Electromagnets offer greater control over the magnetic field strength and orientation, allowing for customization and flexibility in imaging. Additionally, they do not pose the risk of accidental demagnetization, which can occur with permanent magnets.

Q: How long does an MRI scan take?

A: The duration of an MRI scan can vary depending on the body part being imaged and the specific imaging protocol. Generally, an MRI scan can take between 15 minutes to an hour.

Q: Can everyone undergo an MRI scan?

A: While MRI scans are safe for most individuals, certain conditions or metallic implants/devices may restrict someone from undergoing an MRI. It is important to inform the healthcare provider about any relevant medical history or implants before scheduling an MRI scan.
